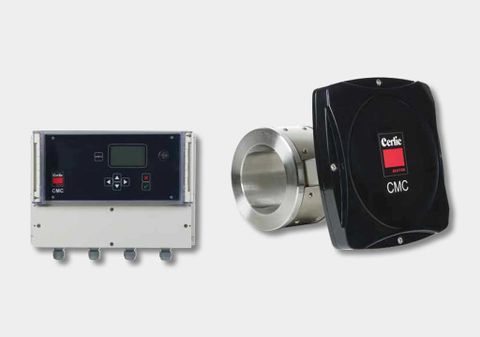

CERLIC CMC high concentration TS sensor
https://www.cerlic.se/en/
Last Update
Price:
R.F.Q.
Share Product:
Detail
- Micowave, high concentraion total solids (TS) sensor
- True phase-shift microwave technology provides stable signal & prevents empty pipe errors
- No moving parts for long life & low maintenance
- Angled sensor (antenae) surfaces for self-cleaning
- Designed for digested, dewatered or primary sluge
- Range: up to 30% TS (300,000mg/L or ppm)
- Process connection: wafer flange for DN50 » 300, insertion type model also
- Conductivity: varies depending on pipe size - refer datasheet
- Process pH: 2.5» 11.5
- Temperature: 0 » 100°C
- Pressure: PN16 (recommend at least 1.5bar to remove air from sludge / biosolids)
- Supply: 85»264Vac
- Display: remote mount with supplied 10m cable
- Enclosure: IP65
- Accuracy: ±1% FS (TSS)
- Outputs: 2 x 4-20mA or HART analogue outputs - TS concentration & sludge temperature
